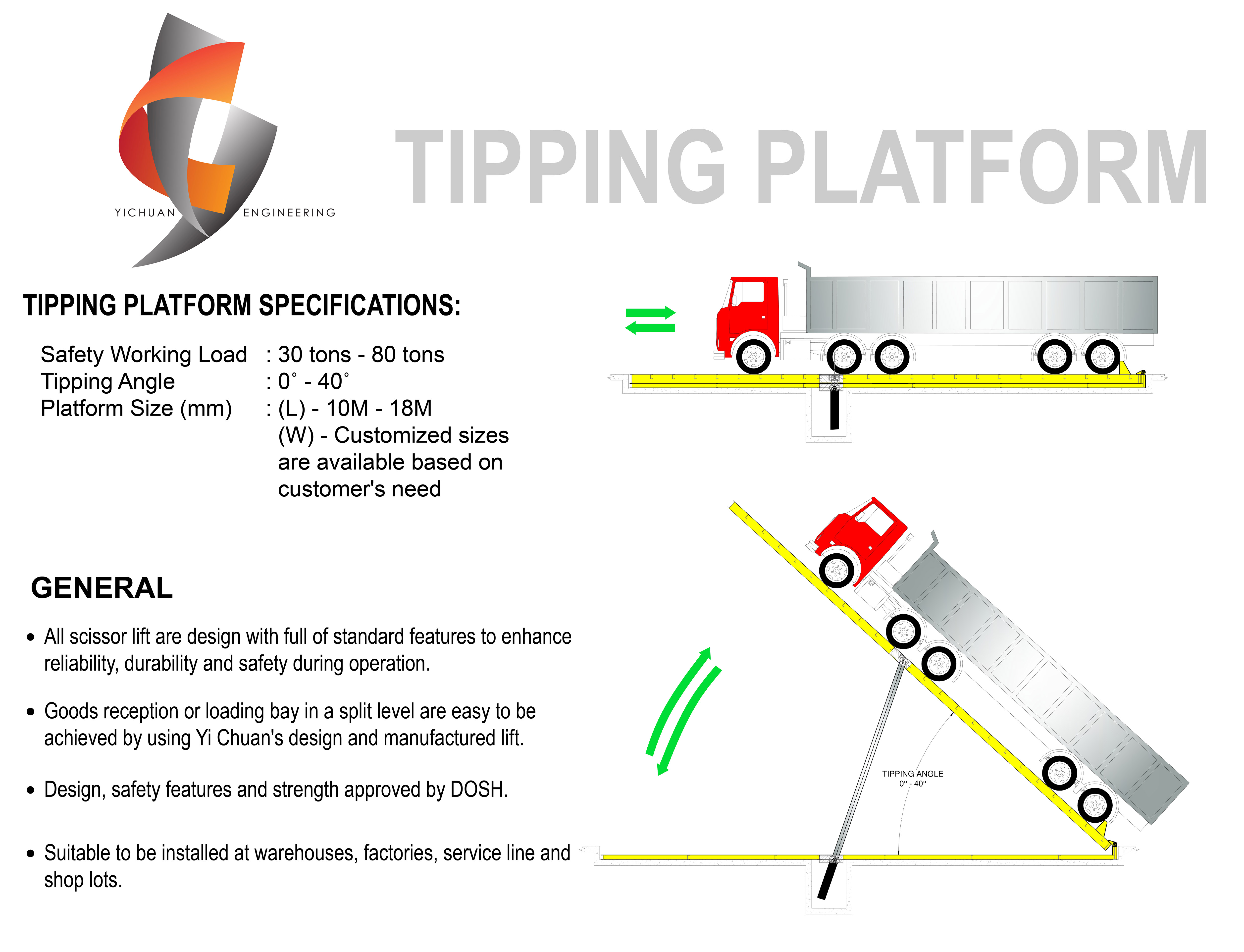

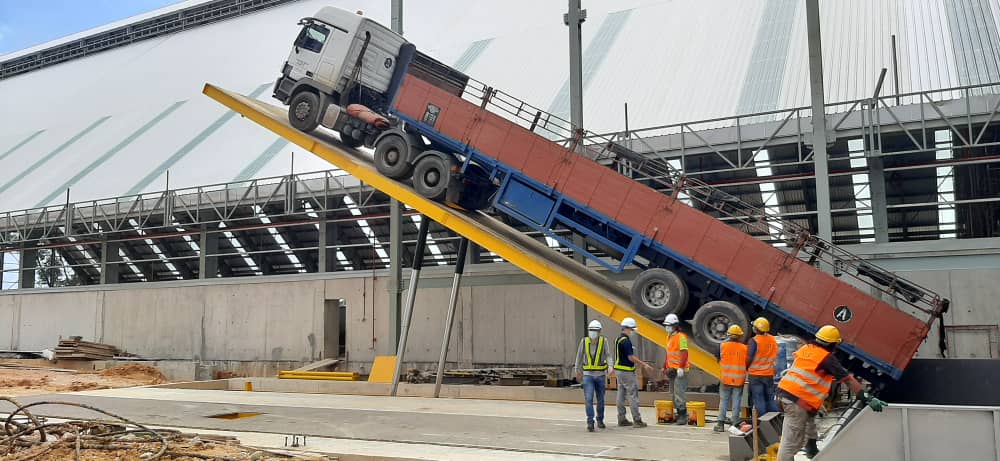

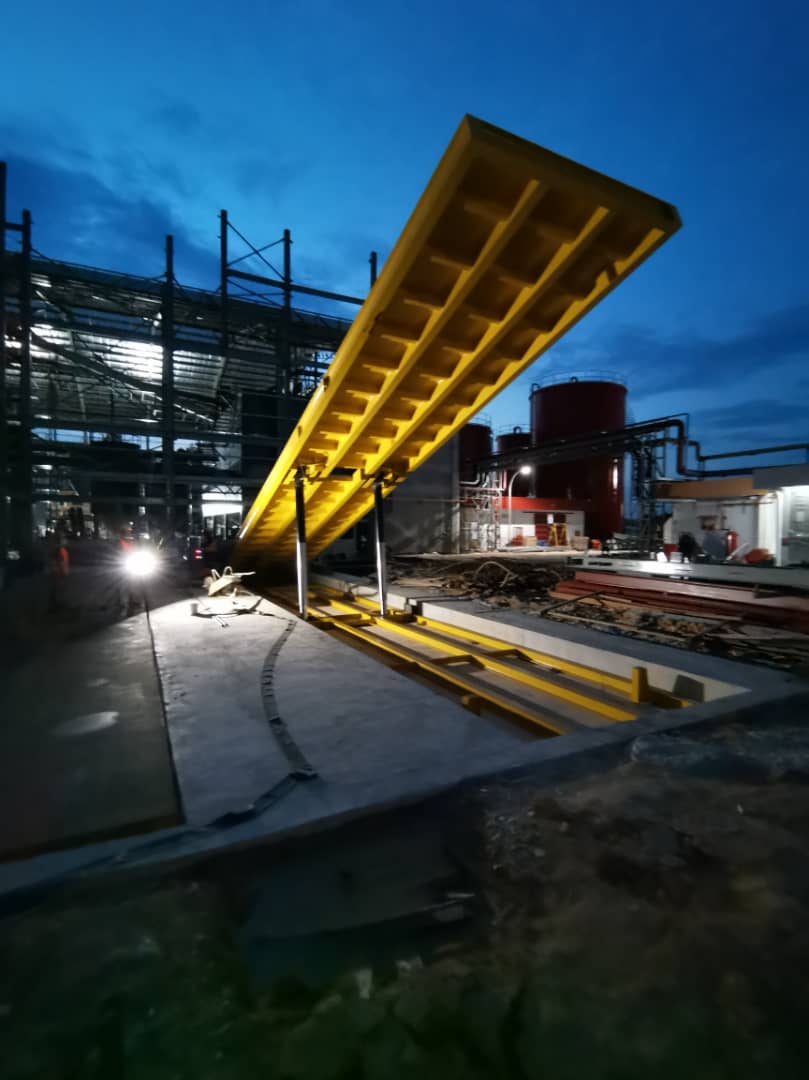

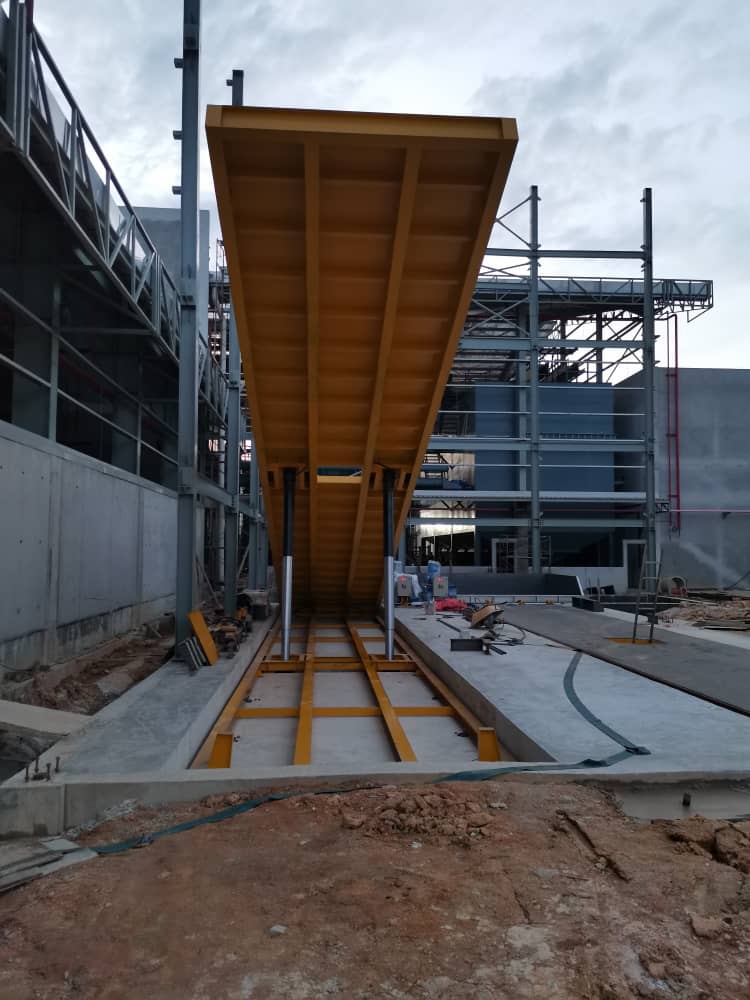

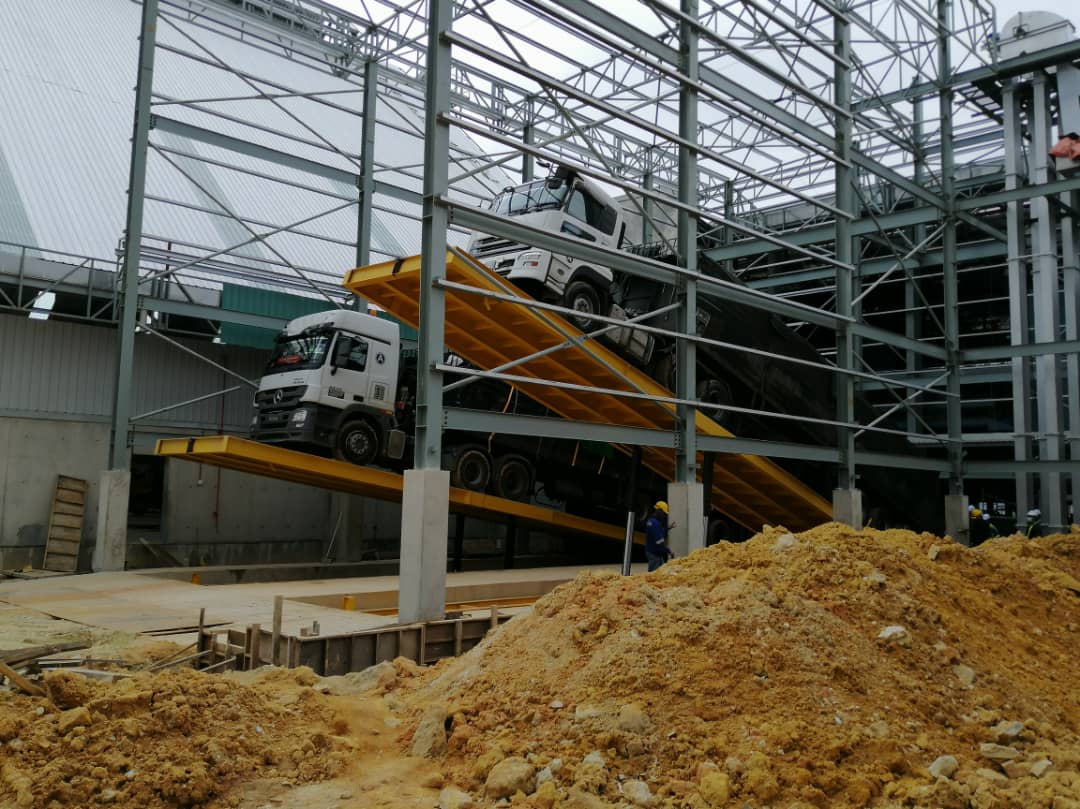

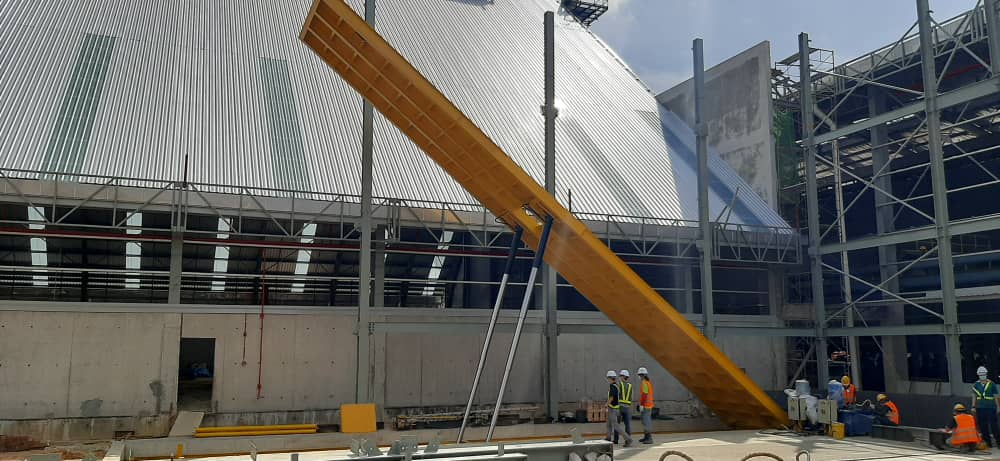

TIPPING PLATFORM SPECIFICATIONS:
| Safety Working Load |
: 30 tons - 80 tons |

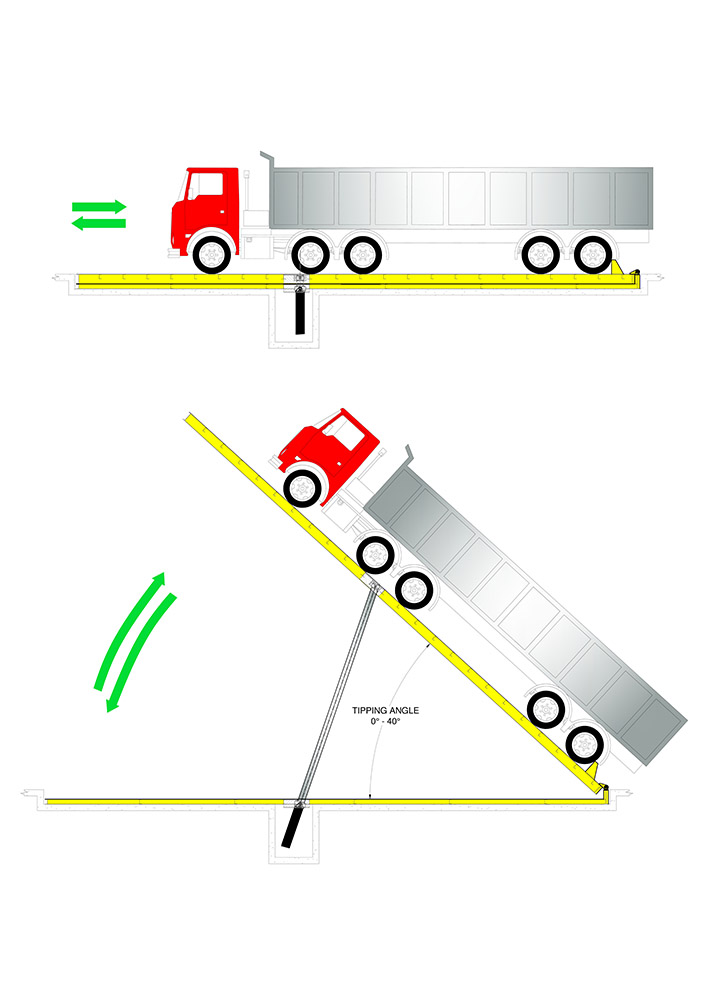

| Tipping Angle |
: 0˚ - 40˚ |
| Platform Size (mm) |
: (L) - 10M - 18M (W) - Customized sizes are available based on customer's need |
GENERAL
- The platform is of an extremely rigid construction manufactured mainly from beam and heavy duty-steel plates.

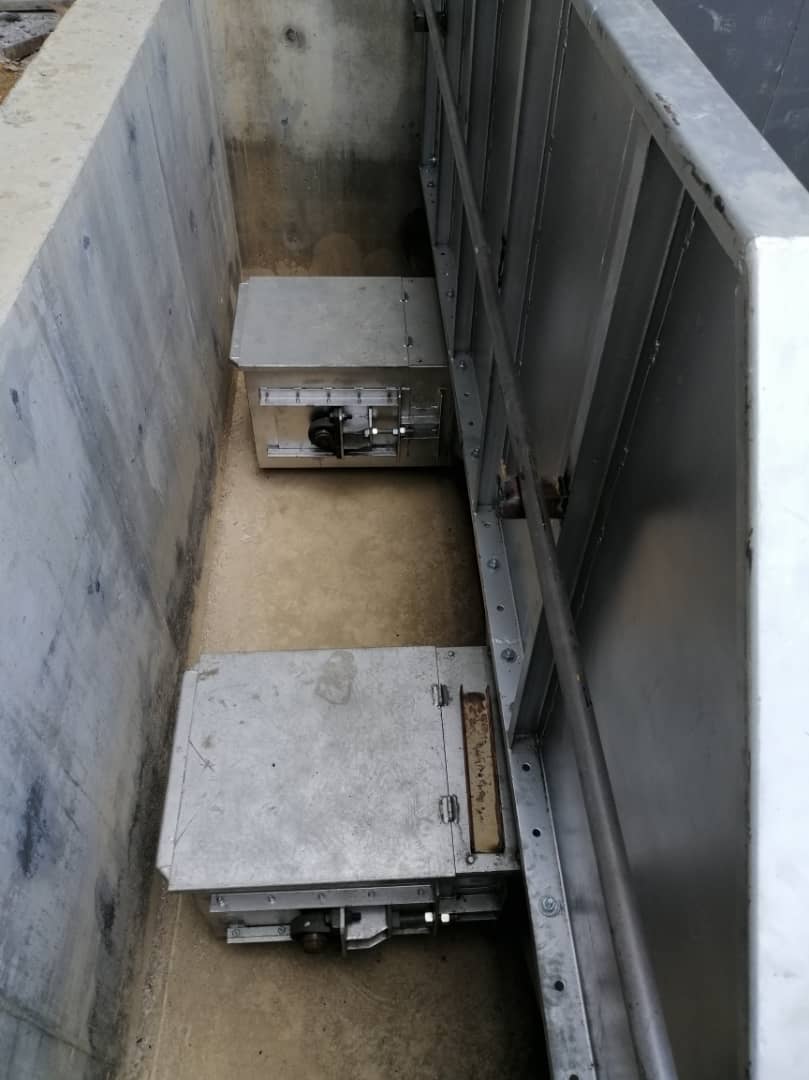

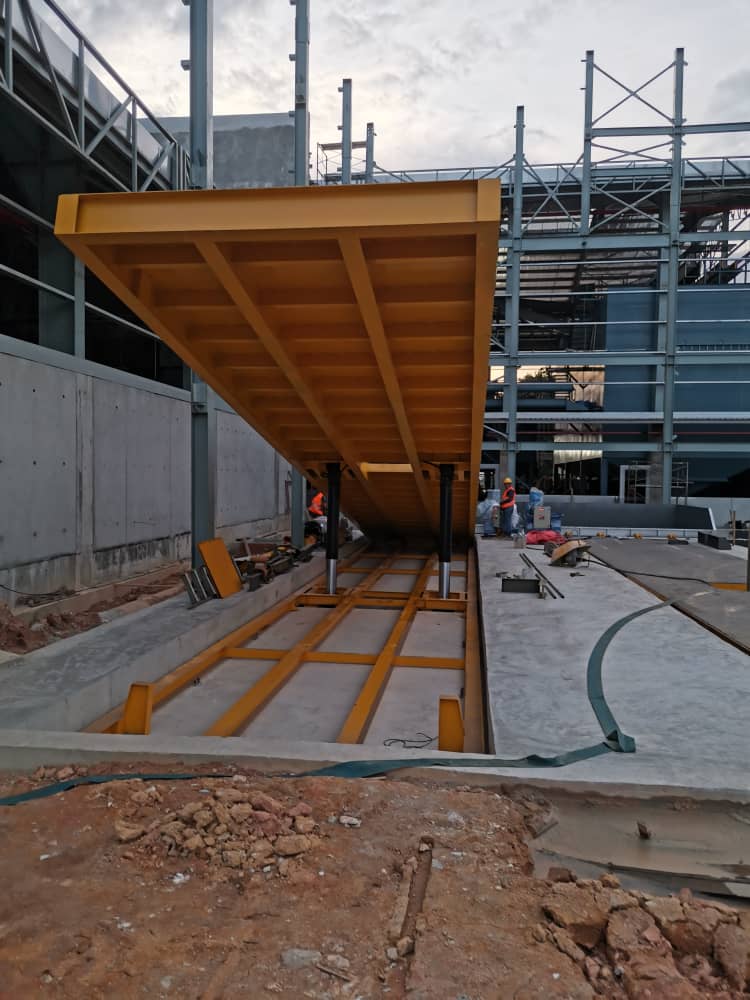

- An inspection door is located in the deck of the platform in order to allow access to the hydraulic system and cylinders.
- The hydraulic cylinders are securely fastened in a heavy frame.

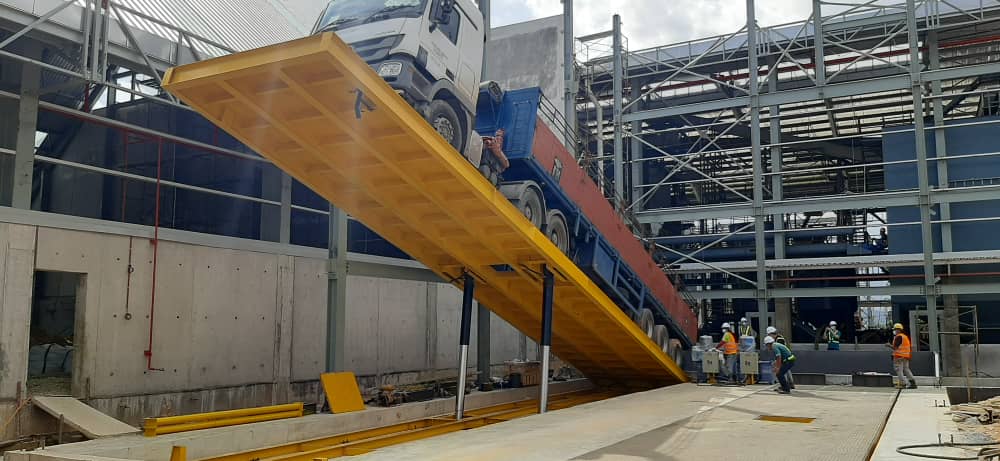

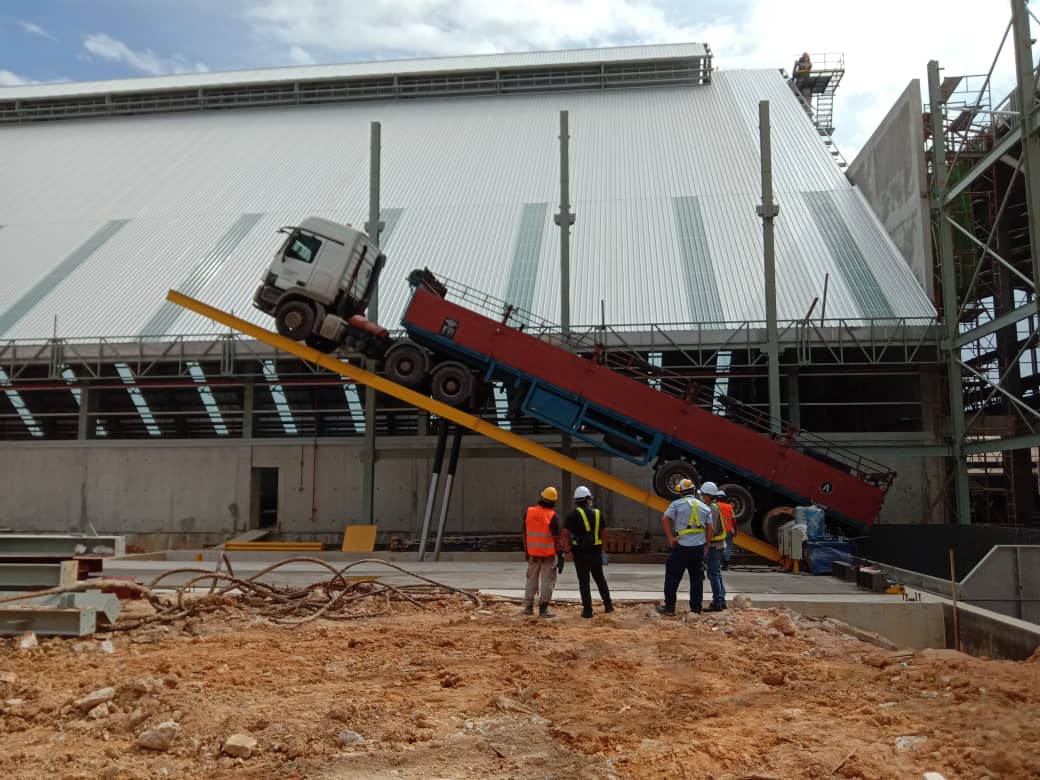

- The standard tipping angle is usually 35 degrees, but can be made up to 40 degrees depending on material to be dumped.
- Raising time is about 120 seconds and lowering time is approximately 90 seconds.
- Capacities ranges from 30 to 80 Tons.
